PRODUCTS

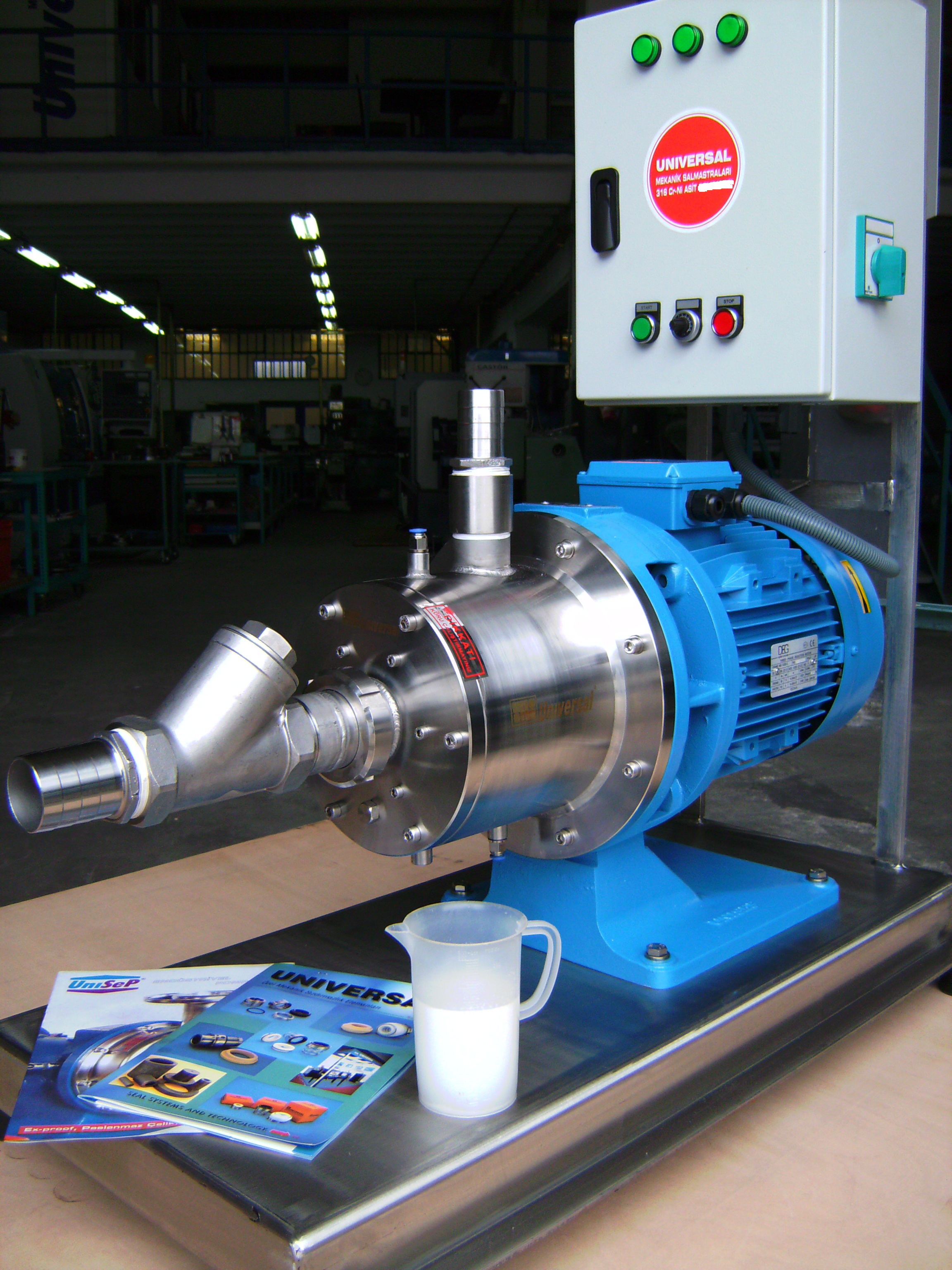

AAB HOMOGENIZER
AAB HOMOGENIZER PROPERTIES;

- In-line installation feature allows continuous and continuous operation.
- Design and design are compact.
- It is economical due to low operating and maintenance costs.
- High efficiency and high product warranty.
-The automatic process is suitable for operation.
- Provides comfortable working environment with low volume.
- Cooling-heating jackets for heating control are available as standard.
-The speed control is practical.
- AISI 316L, AISI 316TI Manufactured from stainless steel.
- It has long working and service life.
- It is produced as a standard with digital technology and there is no spare parts problem.



  Type             Connection dim.    Power.   Speed.    Capacity.

1- UHSM 1- 80   1 1/2 "- 1"          5,5 Kw.     4.500.Rpm / min.    1m3 / h.
2- UHSM 1-100   2 "- 1 1/2"         7,5 Kw.     3.000.Rpm. / min.   2m3 / h.
3- UHSM 2-110   2 "- 1 1/2"        11 Kw.       4.000.Rpm./ min.     5m3 / h.
4- UHSM 3-120   2 "- 1 1/2"        22 Kw.       5.500.Rpm. / min.  10m3 / h.
5- UHSM 4-140   3 "- 2"           45Kw.        8.500.Rpm. / min.   20m3 / h.
